ITW Linx – MODULAR SURGE PROTECTOR

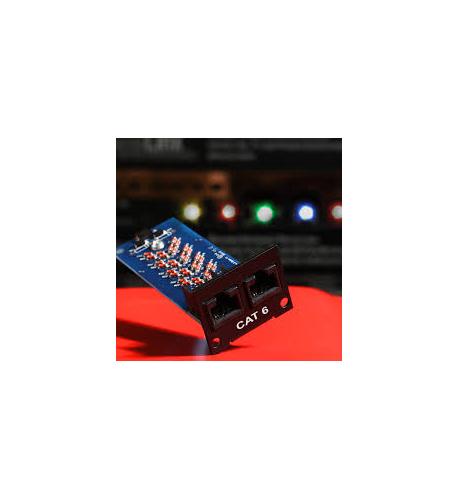

Telco lines coming into the building are a common path for lightning damage to phone systems and routers. The ITW Linx RM12-CAT6-235 is a solid state RJ45 protection module for T1 telco and analog lines, sized for the RM modular frames.

• Application: T1 telco and analog lines
• Agency approval: UL 497 and 497B
• Clamping level 235V, response time 1 to 5 nanoseconds
• Protects 8 wires, 4 pairs per port
• Needs field-installed solid copper ground wire

This is the higher voltage member of the RM12 family, so pick it for telco and not for PoE. Call (866) 205-4112 with questions on which module you need.
